Place of Origin:
China
Brand Name:
Greenhealth
Certification:
CE,ROHS
Model Number:
CR-37.5
Contact Us
Video
Warehousing & Supermarket Supplies Walk In Cold Room Seafood / Beef / Chicken Freezers
Product features:
Cold Room Panel PU with 100mm Thickness :
*Temperature setting around -18/-25/0~8°C for cooling storage
*Main Applications: Keep food,vegetables,fruits in fresh. For supermarket, restaurants,hotels, dininghalls, meat shop,fish store,etc.
*Copeland Compressor,Vertical scroll compressor
*Painted-steel polyurethane panels,thickness 100~150mm, thermal insulation very well.
*Cold room door size:0.8*1.8 meters stainless steel. sliding door for option.
Specification:

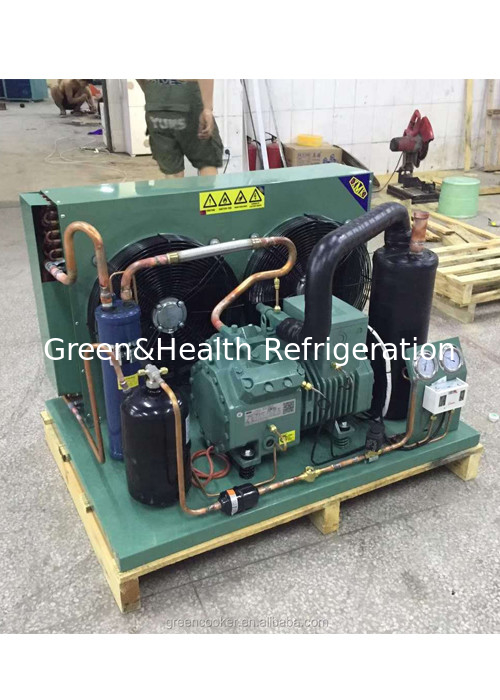

1. Copeland scroll Compressor.
2. Hi-thread condenser.
3. High-thread series of low-temperature DL evaporator
4. Danfoss high-end expansion valve. (Series expansion valve fot freezer, capillary cut for cooler)
5. Full computer control system (automatic control).
6. Apan Saginomiya/ Shangheng solenoid valve
7. Rotor with 3 sets of high-blower.
8. LG electrical components.
9. Emerson dry filter, pressure relay protection, the protection of high-temperature compressor temperature control (temperature liquid spray for freezer).
10. Cooper piping tube + frozen oil + cooling of the refrigerant 404A +silver eletrode + Insulation. Condensate water processor. Packing+carton box/wood box+certification
11. The doors of the cold room have safe lock which is help to open them from inside The price is our weapon,quality is our life.
To save the cost of investment and operating costs for our client, Some available dimension, Welcome OEM
Specification
|
Product Name
|
Cold Storage Room/Cold Room |
|
Temperature
|
0~10 degree |
| Machine Lord position(optional) | Integration refrigerating unit/built in unit or Seperation unit |
| Cooling style(optional) | Air cooling or water cooling |
| Door frame |
Three types for optional
double side painting steel
double side stainless steel
double side aluminum board
|
| Top plank | |
| Wall plank | |
| Door | |
| Cape plank | |
| Boffom frame | |
| Scale board | |
| Product Size | 3m*2.7m*2.5m |
| Product Volume | 20m³ |
| Unit power/horse number | 3HP |
| Body material thickness | 100mm |
| Single door size | W800mm*H1800mm |
| Cold room with floor panel thickness | 100mm |
| Compressor | Valley wheel compressor |
| Generally the rated power of the cold room depends on the size and temperature.please find the below data. | |

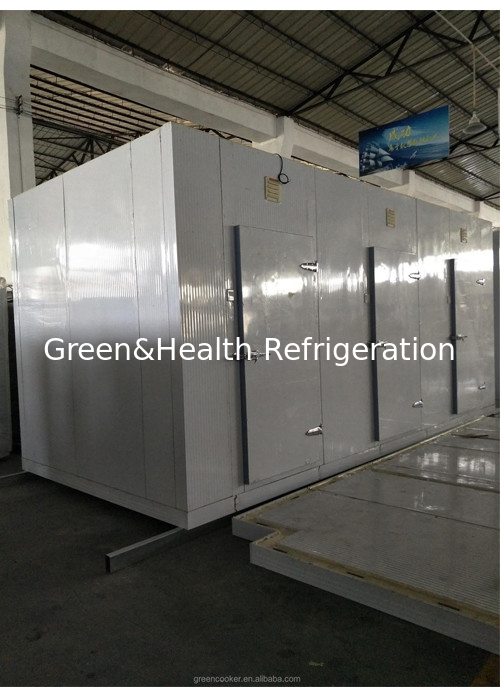

Product picture
Fin type evaporate automatic defrost

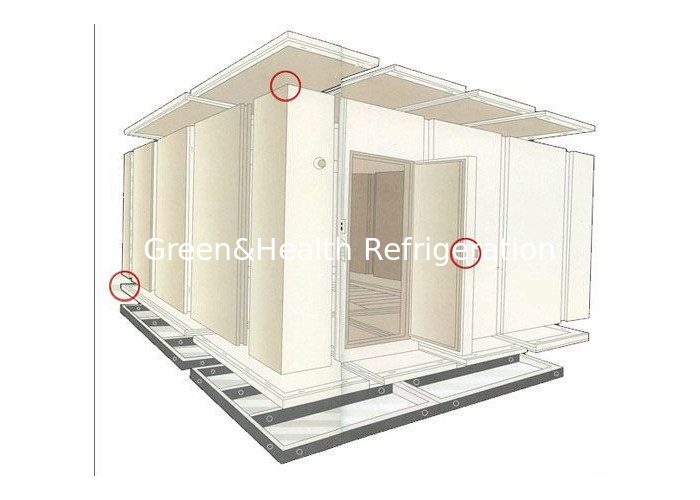

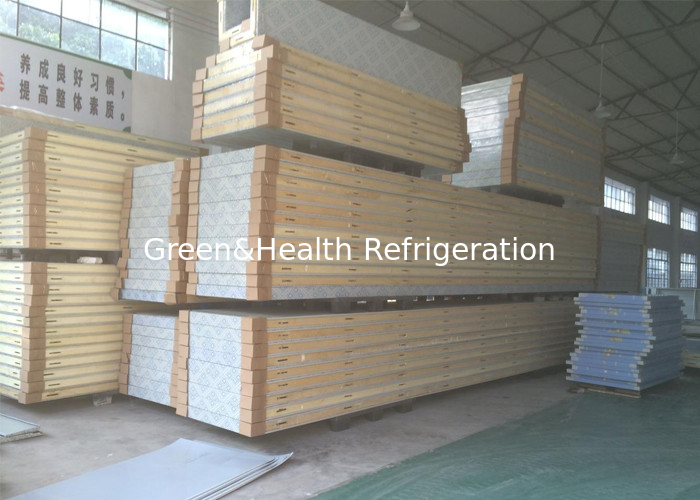

PU panels for cold room body
Company profile
Guangdong Green&health Intelligence Cold Chain Technology Co.,ltd is a professional commercial refrigerators and freezers manufacturer, which locates in Guangzhou, China. We mainly produces large commercial freezers, such as display fridge, cabinet freezer, refrigerator counter, ice cream display freezer and ice maker, which are widely used in shopping malls, supermarkets, shops, hotels and other commercial places. All of our products get CE, RoSH approval.
Certification
Exhibition
FAQ
1. Are you Trading Company or Factory/Manufacturer?
We are factory/manufacturer, locates in Guangzhou City, Guangdong Province,China.
2. What is your MOQ?
Our MOQ is 1 piece.
